Description
Description:

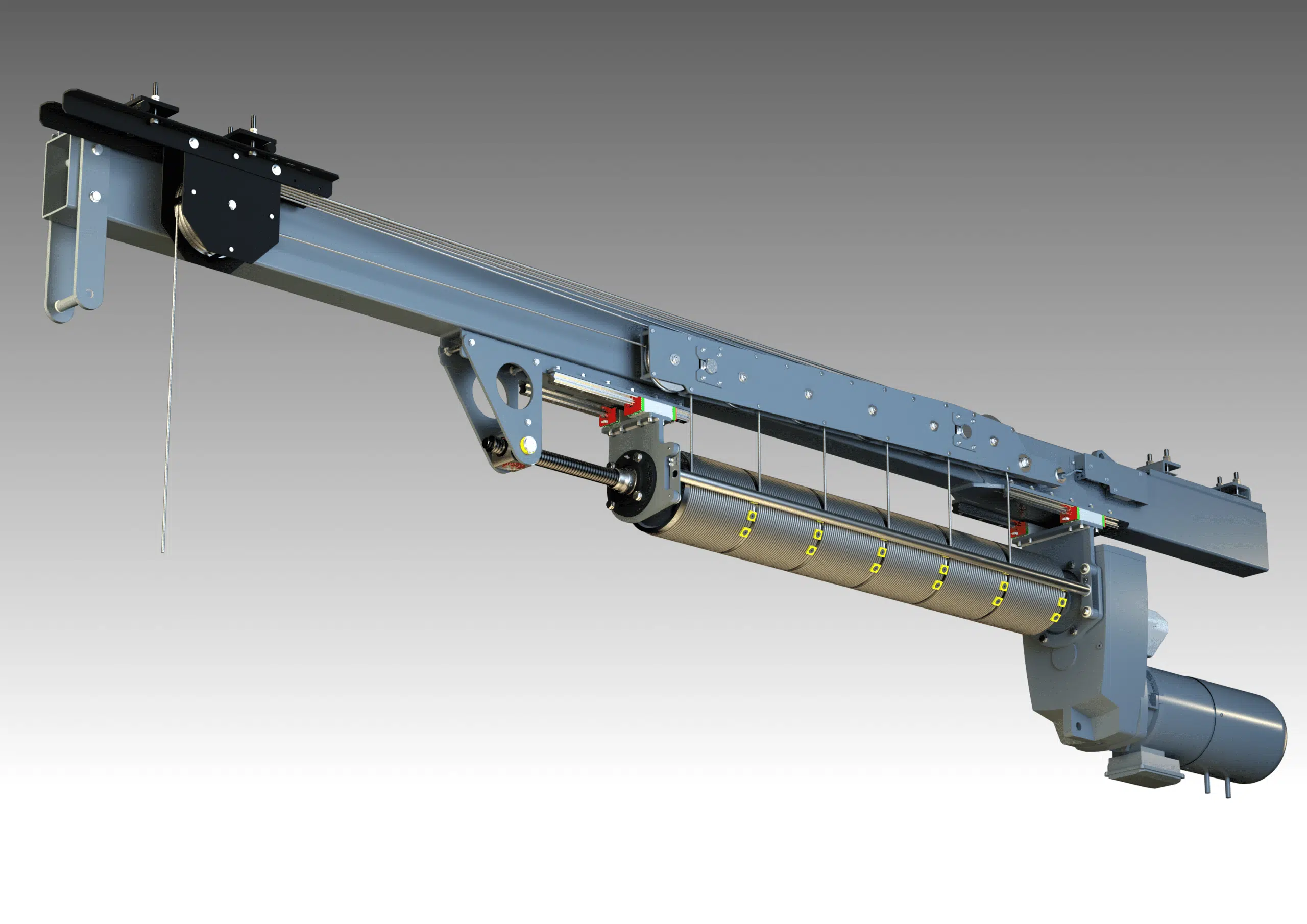

· High-end general purpose fly bar hoist with moving drum and headblocks assembly.
· MST hoist design could be easily adapted to different stage needs for theatres, auditoriums and cultural centers.
· MST hoist allows for suspending loads over the stage such as scenery, lighting equipment, ceiling panels, draperies etc.
Characteristics:
· MST fly bar hoist is designed to allow horizontal or vertical mounting on grids or motor rooms.
· Suitable for replacement of existing counterweight sets.
· Load up to 12 kN.
· Travel up to 27 m.
· Up to 8 lift lines.
· Variable or fixed speed operation.
· Electrical equipment with coordination type 2 independent protections and power/brakes redundant control.
· For use with Chemtrol’s control systems and consoles i-Control GX1, i-Control PX1m and i-Control E.
Main components:
· Main frame with moving grooved winding drum and built-in headblocks assembly.
· Helicoidal gear reducer.
· Silent DC double brake.
· Variable speed drive (not applicable for fixed speed units).
· Travel and safety limits switches.
· Winding and slack cable sensors.
· Absolute and incremental or double channel encoder.
· Load cell.
Applicable regulations:
MST hoist complies with the following CE regulations:
• Machinery Directive MD 2006/42/CE
• Low Voltage Directive LVD 2006/42/CE
• EMC Directive 2004/18/CE
Designed in accordance to:
• EN 17206/DIN 56950
• EN ISO 12100
• EN 60204-32
